Stationary Dock Heavy Duty Corner Leg Pipe Holder,Galvanized Hardware for Dock, 1/4" Thickness Dock Pole Bracket Pipe Sleeve for Floating Dock Corner Leg Pipe Post, 7/16" Holes for 3/8" Carriage Bolts

Brand: JYINCPED

Color: Silver

Features:

• Heavy Duty Hardware Dock Brackets: Constructed from marine grade 1/4' thickness standard hot-dipped galvanized steel hardware and welded onto a heavy duty 5' x 5' backer plate, featuring solid, durable and rustproof to fit for the freshwater and marine environments. Stationary dock corner leg pipe holder is aiming to provide the long useful service for your floating docks.

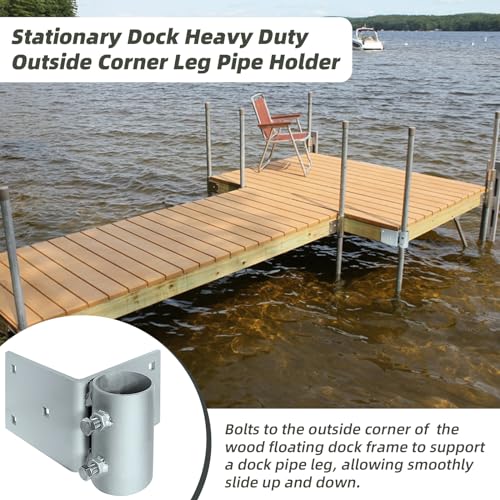

• Build Floating Docks: Heavy Duty stationary dock corner leg holder bolts to the corner of the wood dock frames to support a dock pipe leg pole, allowing the floating dock to smoothly slide up and down with the water levels and stabilize the dock on the lake.
• Compatibility: The inner diameter of the stationary dock pipe holder fit for round dock side leg pipe up to 2″ OD. Accommodating various pipe sizes by side bracket set screws. The dock pipe brackets mounting holes is 7/16”fitting for 3/8” carriage bolts (carriage bolts are not included).
• Easy to Use: Pre-punched bolt patterns allows to easily install directly to the side of dock frame. Installed the hardware dock corner brackets in the wooden floating docks with four carriage bolts (not included). Loosen and tighten the set bolts with shoulder nut to adjust the height of the dock, allowing the dock float.
• Warm Tips: The industry standard calls the stationary dock pipe size as 1.5″ schedule 40 but the O.D. is actually 1 7/8″. Please check the size of dock leg pipe pole before purchasing.

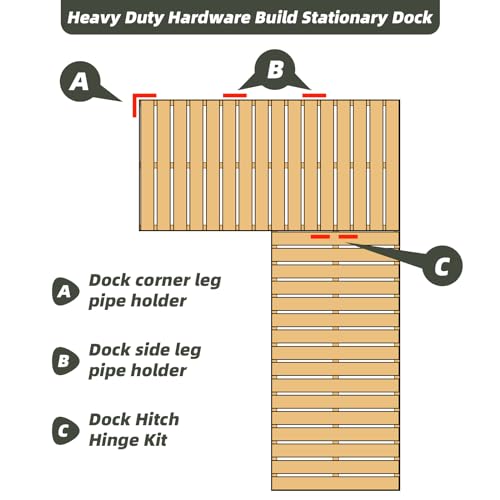

• Other Dock Heavy Hardware for Building Floating Docks: The stationary dock side leg pipe holder bolts to the side of the wood floating dock frames to stabilize your pier (ASIN: B0D47V2P9M). Dock Connector Hinges used for between-dock and shore-to-dock or ramp connections and not fit for individual dock sections (ASIN: B0D47VHP8J). If you need these dock heavy duty hardware, please search the ASIN on the amazon.

Details: JYINCPED Stationary Dock Heavy Duty Corner Leg Pipe Holder, A Good Helper to Build Floating Docks

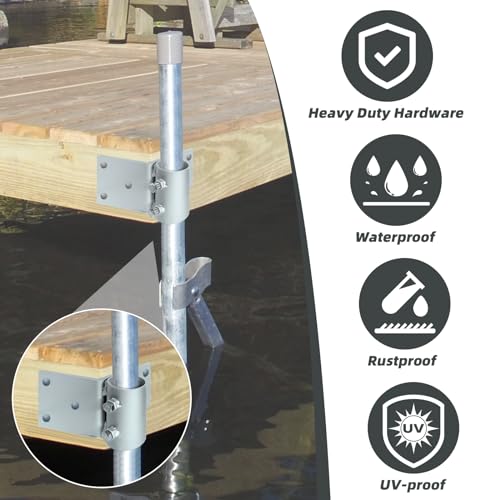

Bolts to the side of the wood floating dock frames to support a dock pipe leg, allowing the floating dock to smoothly slide up and down with the water levels and stabilize the dock on the lake.

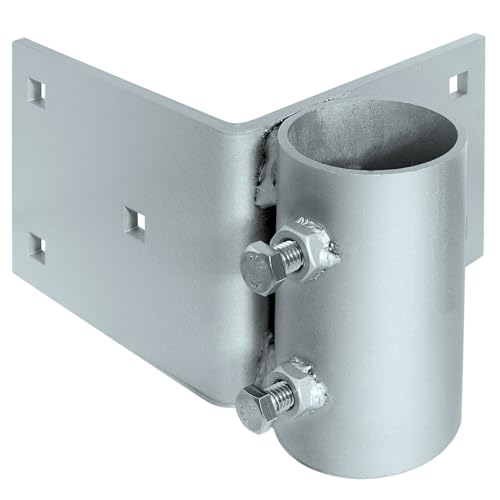

Hardware Dock Pole Brackets

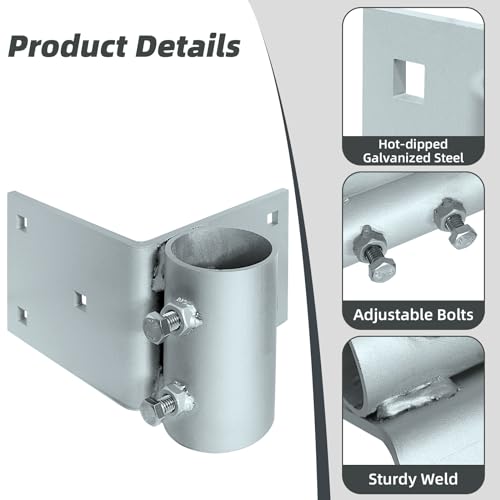

Constructed from marine grade standard hot-dipped galvanized steel hardware featuring solid, durable and rustproof to fit for the freshwater and marine environments.
Welded onto a heavy duty 5' x 5' backer plate that thickness is 1/4' and sturdy enough to provide the long useful service for your floating docks.

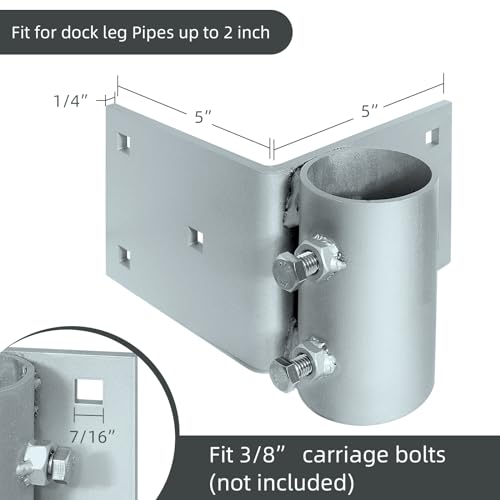

Specifications & Compatibility:
Mounting holes: 7/16'
Bracket length: 5'
Bracket width: 5'
Bracket Thickness: 1/4'
7/16' mounting holes for 3/8' carriage bolts (carriage bolts are not included)
Dock pipe holder fit for round dock leg pipe up to 2″ O.D
Accommodating various pipe sizes by side bracket set screws
The industry standard calls the stationary dock pipe size as 1.5″ schedule 40 but the O.D. is actually 1 7/8″

Easy to Use
Pre-punched bolt patterns allows to easily install directly to the side of dock frame.
Installed the dock side leg pipe holder in the wooden floating docks with four 3/8' carriage bolts (not included).
Loosen and tighten the set bolts with shoulder nut to adjust the height of the dock, allowing the dock float.

Dock Heavy Duty Hardware for Building Floating Docks
The stationary dock side leg pipe holder bolts to the side of the wood floating dock frames to stabilize your pier (ASIN: B0D47V2P9M).
Dock Connector Hinges used for between-dock and shore-to-dock or ramp connections and not fit for individual dock sections (ASIN: B0D47VHP8J ).

Package Dimensions: 8.9 x 6.5 x 6.4 inches

Binding: Tools & Home Improvement
